RC battery connectors are one of the best devices that help with connecting electric circuits together. These connectors are getting popular because of their solid connection with LiPo battery packs which eventually fix an electric circuit.
You can upgrade the power connections of the RC battery connectors to the highest range depending on their capacity. The most common RC battery connectors are the Micro RC Lipo connectors, Medium RC Lipo Connectors, and Large Lipo connectors. You will get many variations among them.
So, if you are planning to use these battery connectors, this article will be helpful to provide you with a better idea about different types of Battery connectors.
What Are the Different RC Battery Connectors?
Before you use RC battery connectors it’s a wise decision to check for the different RC connectors. If you know about all the battery connectors, you can apply the right connector to the right appliances.
Moreover, if you use a specific connector for any of your electronic items, you may need to connect the higher power supply to increase its performance.
So you might know the difference between xt90 vs xt60 battery connectors, Molex connectors vs JST Connectors, and EC3 vs EC5 connectors. That’s how you can wisely make an electronic appliance and can also upgrade its power connections when needed.
Micro Rc Lipo Connectors
Molex Connector:
The Molex connector is a small connector known as the JST PH2 pin. Their ratings can be 1 or 2 Amps. These connectors are too little and you can buy them at a very low cost.
You should very carefully handle it as it can easily detach from the female connector while soldering wires. So, you may use thick CA glue to fix the connection.
Moreover, you should avoid using thin CA glue as it can’t make the connection perfectly and may insulate the connector. However, the male pico blade connector with attached wires seems to be more suitable than the costly chimp tool connector.
You can handle these male connector pins as they are chimped on the wires that’s why you won’t get any soldering heating effect from there.
These Molex connectors are very convenient to assemble two particular components. You can easily replace them, that’s why they are easy to repair. Moreover, you may get various designed Molex connectors with ungrated quality.
You can use these connectors on the Blade and micro helicopters as they are small and single-cell LiPo RC aircraft. In addition, They can be used in disc drives, video cards, DVD drives as well as motherboards.
JST Connectors
These connectors can be used for any kind of battery pack under 1500 mAH. These JST Connectors are very small types of plug that can’t be more than 5 Amps but if you want you can upgrade them to 10 mAH without any issue.
As these small plugs can be easily plugged and unplugged, many people like to use them. Moreover, they are one of the most robust types of RC battery connectors. If you use these connectors, you won’t have to worry to change them anymore which means they can last long.
These connectors can be two types which include wires and chimp. JST connectors are difficult to connect backward and are also very compact. However, it’s may seem difficult to detach it once it gets mated so you may take its benefits and drawbacks too.
Moreover, These connectors often get used to the power supply input in boards. The Oveonic’s min lithium-polymer ion batteries are made with these connectors.
EC2 Connectors
These connectors are considered the smaller version of the EC3 and EC5 battery terminal types. The EC2 connectors can take a load of up to 30 Amps so you can use a bullet pin in this connector.
You can very simply cool down these connectors as they are included with the hidden solder connector housing.
EC2 connector can protect you from shorting and reverse polarity which is ergonomically pleasing. You can use them for low-current drawing craft and also for small quadcopters.
Servo Plugs Connectors
These battery connectors are one of the best RC battery connectors that can take around a 3 Amps load. If you want to upgrade it, you can upgrade it up to 6 Amps for a short duration.
Moreover, These connectors can work with a servo controller and even you can make your own servo connector.
They are used for RC powering methods that include a Flybarless system and receiver, a Small LiPo connector, and also PV terminals.
XT30 Connectors
These connectors’ original version was considered to be the Amass XT connectors; however, nobody knows actually how authentic it is. In today’s marketplace, you will get many copy versions of XT30 connectors.
These connectors can take a load up to 30 Amps and you can increase it up to 40 Amps. The XT30 connectors can handle lower resistance though they are compact and lightweight.
These connectors are ideal for use in small drones and they are perfect for applications up to 35A constant.
Medium RC LiPo Connectors
TRX Connectors
These types of connectors are best for use in vehicles and Traxxas RC boats. You can get a TRX connector of a range of 60 Amps available on the market. It’s very popular because of its impressive connectivity.
Moreover, you won’t have to worry about melting these connectors from overheating as it has full protection.
You won’t have to use heat shrink for its insulation and it is low resistance while maintaining it. They can be used in brushless motors and also high-density battery packs.

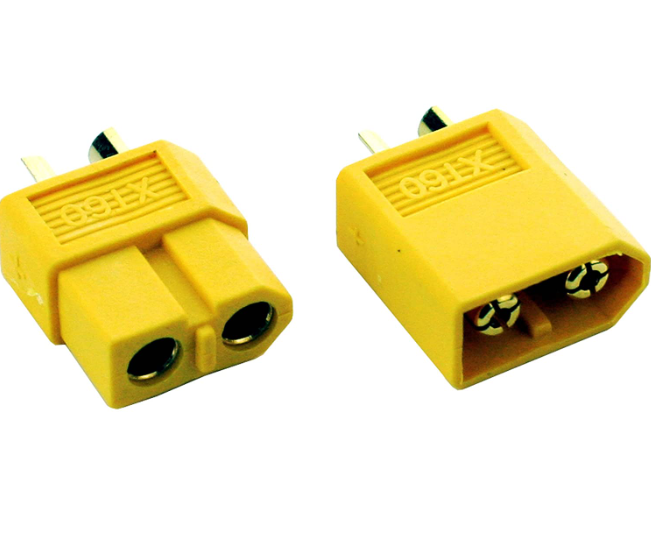

XT60 Connectors
The XT60 Amps is considered the best type of connector among all connectors and it can lead up to 60 Amps. These connectors are nylon made and they are safe from melting. You can replace and reuse these connectors.
They are reliable and high-quality connectors that ensure high Amps connections. Moreover, they are not easily meltable and deformable.
You can use these connectors in your RC FPV Heli and airplane or even Robotics electronic battery.
EC3 Connectors
These connectors are made with 3 mm bullet pins and they can take a load of up to 60 Amps. You can plug and unplug them rather than other connectors.
But they are not easily replaceable as their wires run through connector housing. It’s a very secure connection so you can’t easily disconnect it.
Moreover, They are not easily meltable and do not need to use any insulation for cooling. You can use them for connecting eFlite, Blade line helicopters, or RC car batteries.
Deans Or T Plug
These battery connectors are made with nylon that can tolerate high temperatures. It doesn’t have reverse polarity because its shape can prevent it.
You will be assured of an efficient connection from it as it is made with gold plated coating. Moreover, it is secured for a lipo battery as well as any kind of motor connection.
These connectors are secure for use on any robotic electronics to a battery, Lipo battery motor, and RC hobby batteries.
Large LiPo Connectors
EC5 Connectors
These battery connectors are larger than the EC3 connector and are made with 5mm bullet pins. They can take the highest load up to 150 Amps.
You can use them for large-scale electric planes and RC car batteries. It doesn’t need any heat shrink insulation as its soldered wires are pushed through the connector housing.
EC5 connectors are best for electric hails having 700-800 sizes. These are used for RC car batteries as well as large-scale electric planes.
XT90 Connectors
The XT Connectors can take the average of 90 Amps power load and the highest you can upgrade it to 120 to 130 Amps. You may have to use heat shrink on the exposed soldering joint’s back. But if you use a plastic insulation cap you won’t have to use any heat shrink.
It provides a reliable and solid connection which makes a strong connection for minimal resistance. You can use these connectors in remote-control aircraft, RC models, RC chargers,s and also in the RC ESC.
XT150 Connectors
These RC battery connectors can take a huge lead up to 150 Amps. In addition, they are big in size and their bullet pin is 6mm. You can easily make a super solid connection by using these connectors.
The XT150 Connectors are used for RC drones, cars, Airplanes, and also for RC Boats.
These connectors are large so you need enough place to set them up. Moreover, the XT150 connectors are popular for their solid connection and these are hassle-free to solder and use.
AS150 Connectors
You can use these AS150 Connectors for use in high-power applications and they can take a high load of 200 Amps. There you can use 7 mm-sized bullet pins. That’s why you can get an excellent reliable connection from them.
An interesting fact is that it is based on spark suppressing technology so you won’t have to worry about damaging issues. You can get an open-sized design from it. That’s why this battery connector is easy to solder.
These connectors can be used for RC UAV Lipo battery or other heavy multirotor builds including DJI S1000, and Tarot X-series frames.
Bullet Style Connectors
This type of connector can be used with different-sized bullet pins according to the bullet’s size. They are known as Banana Plugs. These connectors can vary depending on the bullet length.
You will definitely get a reliable and solid connection from these connectors and you can easily connect and reconnect them. In addition, you can easily hook them up.
These connectors are ideal for use in car or marine applications. Moreover, they can be used to wire lights and solar panels.
Anderson Power Pole Connectors
These connectors are best for use in industrial electronics connections. Its housing quality has made it popular among other connectors. You can easily plug and unplug them as their connections are not strong enough.
Once you connect it perfectly, it will never be plugged in reverse polarity. You can use them for radio control, data centers, robotics as well as railways. They have self-cleaning contracts.
Final Thoughts
RC Battery connectors can be used for all types of electronic connections. You will get various types of battery connectors with different ranges for use in various applications.
The most common types of connectors are balance connectors and power connectors. The power connectors can be used for high current use and the balance connectors are generally used for individual cell’s voltage.
RC battery connectors are crucial for smaller electronic models and also for high-performance RC hobby.
So, which types of battery connectors have you used in your work and how do they perform, let us know in the comments.
